Static Seat Simply Type Swivel Train Driver Seats With Height Adjustment

Product Categories
Shaanxi Botai Automobile Accessories Co.,Ltd.
Contact Now

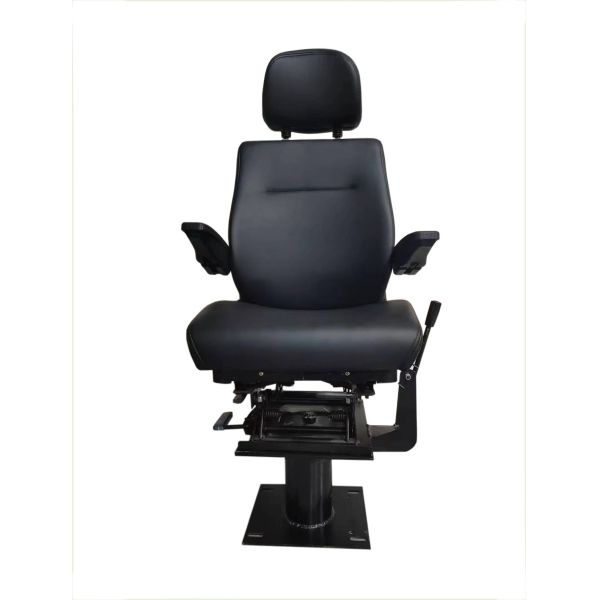

Static Seat Simply Type Swivel Train Driver Seats With Height Adjustment

Brand Name : Botai

Model Number : S802-72

Certification : ISO9001

Place of Origin : Shaanxi China

MOQ : 1 set

Payment Terms : T/T

Supply Ability : 100 Sets Per Week

Delivery Time : 10-15days

Packaging Details : 6-8 Cartons Packed To A pallet

Name : Static Seat Simply Type Swivel Train Driver Seats With Height Adjustment

Horizontal adjustment : +/-70mm

Backrest Size : 480*530mm

Backrest Adjustment : 40-170° or 80-120°

Material : PU

Product Colorey : Black

Size : 1 Set

Delivery time : 10-15days

Contact Now

Static Seat Simply Type Swivel Train Driver Seats With Height Adjustment

Details

Product Name
Static Seat Simply Type Swivel Train Driver Seats With Height Adjustment
Place of Origin
Shaanxi China
Product Model
S802-72
Scope Of Application
Universal
Product Size
560*500*1150-1210mm
Product Material
PU
Product Color
Black
Backrest Size
480*530mm
Cushion Size
480*470*(440-500)mm
Head Restraint Adjustment
3 gears adjustable, 25mm for each gear
Adjustable Backrest Elevation
40-170° or 80-120°
Height adjustment
60mm
Horizontal adjustment
Front 70mm, Rear 70mm
Function
360°rotation
Mounting hole spacing 180*230mm or as your requried

Static Seat Simply Type Swivel Train Driver Seats With Height Adjustment

Function Show

Headrest Adjustment :Rotate hand wheel adjust armrest,3 Levers Adjustcable, Each lever 25mm

Backrest Adjustment:Turn the handle to adjust backrest

Lifting Adjustment :Pull the handle to adjust seat cushion up/down

Sliding Adjustment :Lift slide handle to adjust seat fore and aft movement

Rotation Adjustment :Pull the button to adjust rotation direction

Static Seat Simply Type Swivel Train Driver Seats With Height Adjustment
size
Static Seat Simply Type Swivel Train Driver Seats With Height Adjustment
